Sealed glass unit survey

Failed sealed units to replace: the size to order from your measure and your supplier's correction, makeup, glass, area and weight.

Start your 14-day free trial Try this template

No credit card. Cancel anytime.

Feet and inches or metric: your choice. One switch on the sheet converts every measurement.

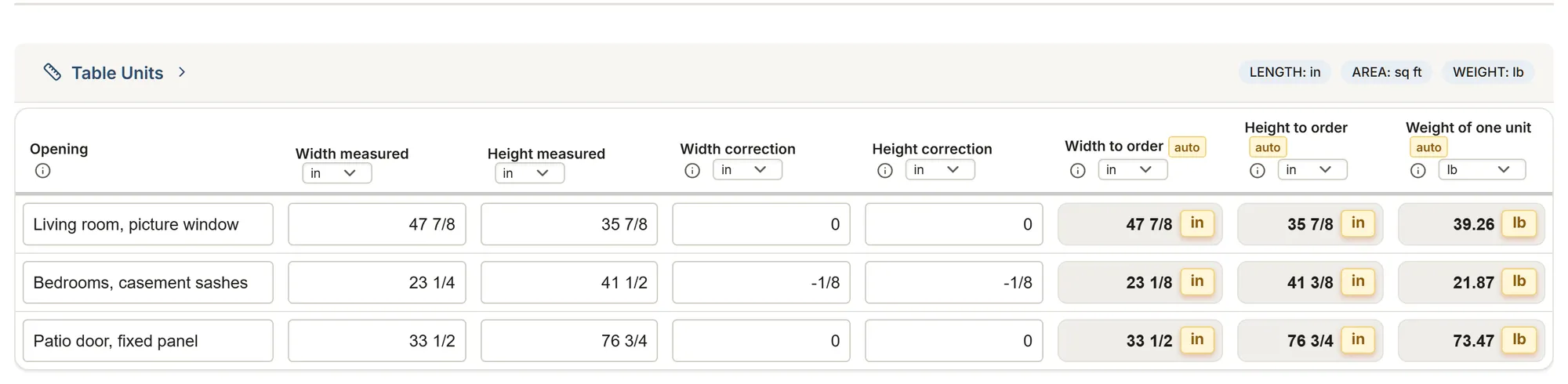

Sealed glass unit survey: a filled-in survey in MesuPro — A survey made with this template, in the app.

What you measure

The template's tables and their columns, as the app shows them. Calculated columns fill in as you type.

Sealed units

Opening
Window or doorChoices: Casement or awning Slider Hung Fixed Patio door Entry door or sidelight Other
Why it is replacedChoices: Condensation inside Cracked or broken Upgrade Other
Measured fromChoices: The old unit The glazing pocket
Width measured
Height measured
Width correction
Height correction
Width to order calculated
Height to order calculated
Overall thickness
Makeup
GlassChoices: Annealed Tempered Laminated
Glass, panes added
Units
Area of one unit calculated
Glass area calculated
Weight of one unit calculated
Notes

About this template

Replace failed sealed glass units: each opening with why the unit is replaced, how it was measured and your supplier's correction, the size to order in sixteenths, the makeup and glass type (the code articles quoted, the call yours), the glass area per makeup and the weight of each unit.

Guide and sources

One row per sealed unit, or per group of identical units. Before writing a unit up, make sure it has failed: Cardinal replaces a unit when the condensation is inside the airspace, cleans both faces first to be sure, and never replaces one for room side condensation from indoor humidity.

Measure the old unit on its edges, or the glazing pocket with its stops removed, width first and in sixteenths. Type the correction your glass supplier asks for that way of measuring: the sheet gives the size to order, the area of each unit and the glass area per makeup, and the weight of each unit for the crew (glass at 158 lb per cubic foot, NGA).

Where the code asks for safety glass, the help quotes the article: IRC R308.4 in the US, NBC 9.6.1.4 in Canada and Quebec. The call is yours, made on site; the sheet does not decide it. The client's report shows the openings, the sizes to order, the makeup, the glass and the area; the measures, corrections and weights stay in your team's report.

Sources

Cardinal IG01, condensation Manufacturer dataTechnical Service Bulletin IG01: indoor condensation or glass sweating on the room side glass surface, Cardinal Glass Industries, IG01, 11/21. Checked Oct 15, 2026
Cardinal IG10, fogging Manufacturer dataTechnical Service Bulletin IG10: fogging potential in insulating glass units, Cardinal Glass Industries, IG10, 08/22. Checked Oct 15, 2026
IRC 2021, R308.4 Code2021 International Residential Code, Section R308.4, Hazardous locations, International Code Council, 2021, R308.4.1 to R308.4.7 (public access). Checked Oct 15, 2026
NGA, glass weight Trade associationApproximate weight of architectural flat glass (Glass Technical Paper FM01-08), National Glass Association (copy hosted by the New York State Office of General Services), FM01-08 (2020). Checked Oct 15, 2026
NBC 2020, 9.6.1.4 CodeNational Building Code of Canada 2020, Article 9.6.1.4, Types of glazing and protection of glazing, National Research Council Canada, 2020, Vol. 2, p. 9-16 (Quebec: Code de construction, chapitre I, in force 2025-04-17). Checked Oct 15, 2026
