Parking lot striping: survey
Stalls by type and angle, lines by kind and color, stencils, curbs and wheel stops, paint per color.
No credit card. Cancel anytime.
Feet and inches or metric: your choice. One switch on the sheet converts every measurement.
What you measure

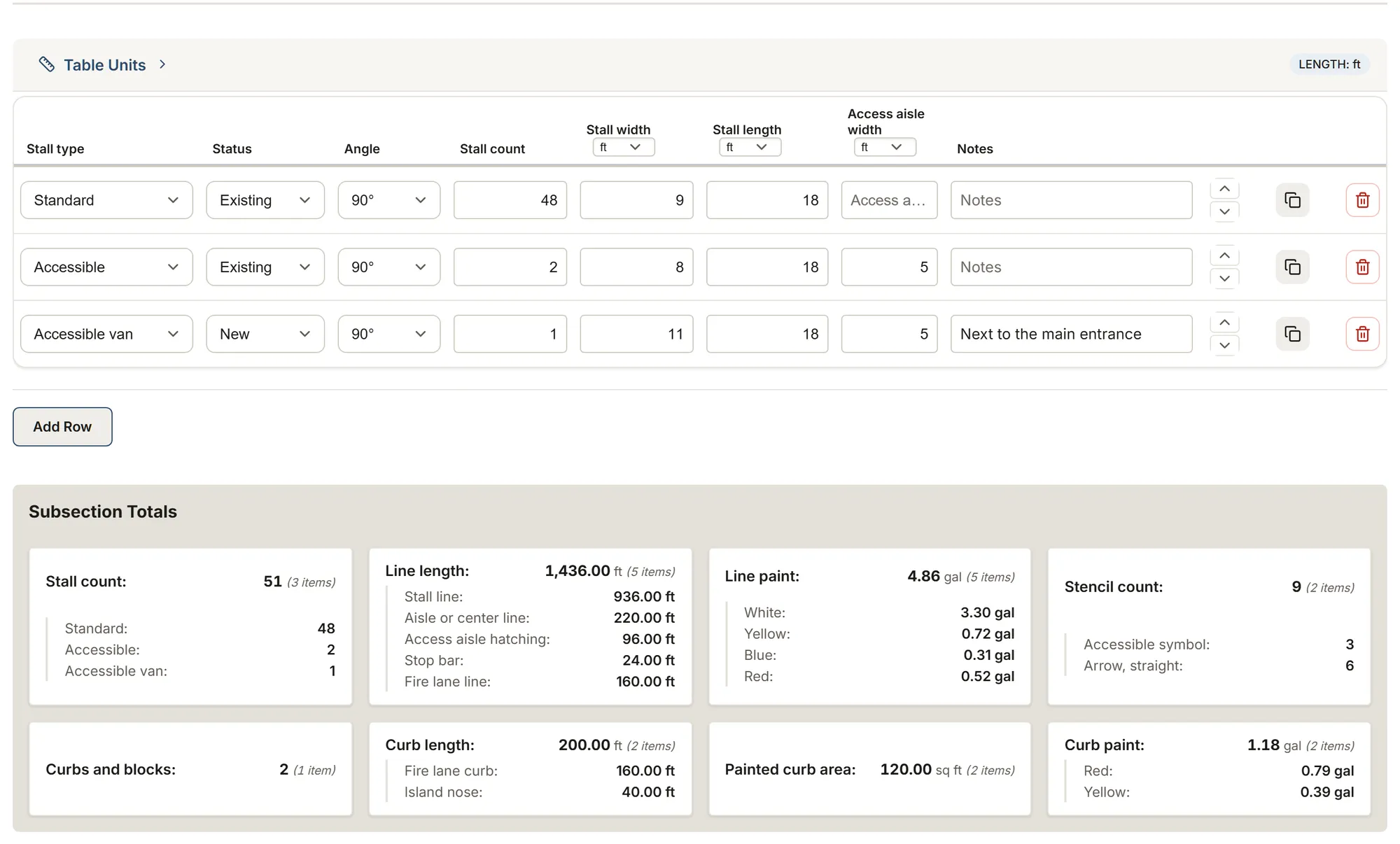

The template's tables and their columns, as the app shows them. Calculated columns fill in as you type.
Stalls
- Stall typeChoices: Standard Compact Accessible Accessible van Electric vehicle Reserved or visitor Motorcycle Loading Other
- StatusChoices: Existing New To remove
- AngleChoices: 90° 60° 45° 30° Parallel
- Stall count
- Stall width
- Stall length
- Access aisle width
- Notes
Lines
- LineChoices: Stall line Double stall line Aisle or center line Edge or lane line Stop bar Crosswalk bar Access aisle hatching No-parking hatching Fire lane line Loading zone Other
- ColorChoices: White Yellow Blue Red Green Black (contrast) Other
- Number of lines
- Length of one line
- Line length calculated
- Line width
- Coats
- Wet film
- Loss
- Line paint calculated
- Notes
Stencils and symbols
- SymbolChoices: Accessible symbol Arrow, straight Arrow, turn Arrow, combined Word Numbers Electric vehicle Compact Other
- Stencil count
- Size
- ColorChoices: White Yellow Blue Red Green Black (contrast) Other
- Painted area of one
- Coats
- Wet film
- Loss
- Stencil paint calculated
- Notes
Curbs and blocks
- ItemChoices: Curb face Curb top Island nose Wheel stop Bollard Speed bump Fire lane curb Other
- ColorChoices: White Yellow Blue Red Green Black (contrast) Other
- Curbs and blocks
- Curb length
- Painted height
- Painted curb area calculated
- Coats
- Wet film
- Loss
- Curb paint calculated
- Notes
About this template
Walk a parking lot before striping: stalls by type, angle and status, lines by kind and color with the paint they take, stencils and symbols, curbs and wheel stops, and the accessible stall count your local rule asks for, typed by you.
Guide and sources
Walk the lot with the plan if there is one. Do not assume the old layout is correct: check it against the plan and your local rules. Give each zone its own subsection ("Add a zone").
Under Stalls, count the stalls by type, angle and status (existing, new, to remove) with their width and length. Stall sizes, colors and the number of accessible stalls are set by your city or state: the help quotes examples, never one rule, and you type the accessible count your rule asks for. This sheet records what is on the lot and what is planned; it is not a review of the lot against the rules.
Under Lines, one row per kind of line and color: the number of lines and the length of one give the length; the width, coats, wet film from the paint's data sheet and your loss give the paint (one gallon at 15 mils wet covers about 320 ft of 4 in line). Count the stencils by symbol with their painted area, and measure the curbs, islands and wheel stops to paint. The paint is totalled per color in each tab.
Nothing is pre-filled except one coat: film thickness, cure and temperature limits come from the paint's data sheet, which always wins. On a lot that is also sealed, add the Sealcoating survey to the same project.
Sources
- Portland Zoning Code 33.266 Government
- San Diego Municipal Code 142.0560 Government
- NYC Zoning Resolution 25-62 Government
- ADA 2010, 208 and 502 Code
- MUTCD 11th edition Government
- Sherwin-Williams SetFast Manufacturer data
- SealMaster, TTP-1952b Manufacturer data
- SWARCO 1140 Manufacturer data
- Rust-Oleum 2300 striping Manufacturer data
- FHWA SHS, ISA marking Government
- SealMaster, striping guide Manufacturer data
- Ontario O. Reg. 191/11 Government
- NBC 2020, 3.2.5.6 and A-3.8.2.5 Code
- Ennis, waterborne traffic paint Manufacturer data
- Québec City, R.V.Q. 1400 Government
- Laval, CDU-1 Government
- Gatineau, zoning bylaw 532-2020 Government
- Quebec Construction Code, 3.8.3.4 Code
- MTQ, road marking manual Government
