Roof repair survey
Shingle and flashing repairs: damaged areas, bundles to match, step pieces from the exposure, chimney width; skylights to replace and their light shafts.
No credit card. Cancel anytime.
Feet and inches or metric: your choice. One switch on the sheet converts every measurement.
What you measure

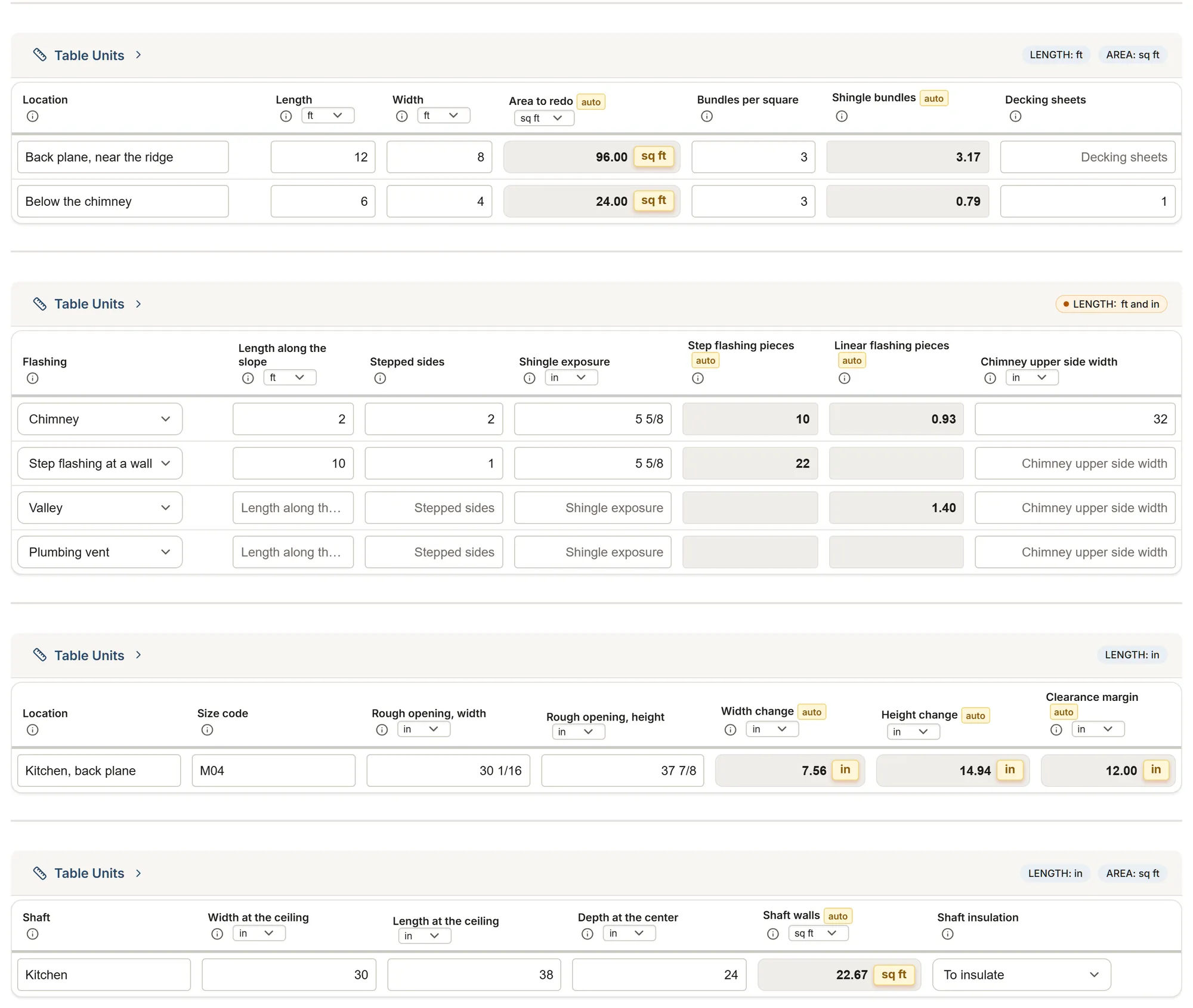

The template's tables and their columns, as the app shows them. Calculated columns fill in as you type.
Damaged areas
- Location
- What is wrongChoices: Missing or blown off shingles Lifted or curled shingles Granule loss Nail pops Leak stain inside Soft decking Other
- Shingle (maker and product)
- Length
- Width
- Area to redo calculated
- Waste
- Bundles per square
- Shingle bundles calculated
- Decking sheets
- Notes
Flashings
- Where
- FlashingChoices: Step flashing at a wall Chimney Skylight Plumbing vent Valley Drip edge Other
- Length along the slope
- Stepped sides
- Shingle exposure
- Step flashing pieces calculated
- Counter, valley or edge length
- Stock length
- Linear flashing pieces calculated
- Chimney upper side width
- Notes
Skylights
- Location
- JobChoices: Replace, same size Replace, new size New opening Reflash only
- Skylight typeChoices: Deck-mounted Curb-mounted Tubular
- Roofing around itChoices: Asphalt shingles Tile Metal Other
- Size code
- Rough opening, width
- Rough opening, height
- Existing opening, width
- Existing opening, height
- Width change calculated
- Height change calculated
- Rafter spacingChoices: 16 in on center 24 in on center Other
- Pitch (in 12)
- Curb height
- Nearest critical areaChoices: Ridge Valley Slope change Roof-to-wall Another skylight
- Distance to it
- Minimum clearance, maker
- Clearance margin calculated
- Notes
Light shafts
- Shaft
- Width at the ceiling
- Length at the ceiling
- Depth at the center
- Shaft walls calculated
- Shaft insulationChoices: Insulated, vapour barrier To insulate Inside heated space
- Notes
About this template
A repair visit on a shingle roof: each damaged area with what is wrong, its size, the bundles to match and the decking; each flashing with its step pieces from the shingle exposure, its linear pieces, and the chimney width the cricket rules are quoted against. No insurance verdict, no price.
Guide and sources
One row per damaged area: what you see (never an insurance or hail verdict), its length and width along the slope, the shingle in place so the repair matches, and the decking to replace. The bundles come from the shingle maker's bundles per square (GAF: most shingles 3), added up per shingle and rounded up once.
For each flashing, its kind and where it is. Step flashing takes one piece over each shingle course (AMCQ): type the length along the slope, the stepped sides and the shingle exposure (Owens Corning Duration: 5 5/8 in), and the sheet counts the pieces. Counter flashing, valley metal and drip edge are counted at your stock length. The help quotes each rule side by side: IRC R905.2.8 in the US, NBC 9.26.4 and the AMCQ's Division 4 in Canada and Quebec.
For a chimney, type the width of its upper side: a cricket or saddle is asked above 30 in by the IRC (unless the chimney meets the ridge), above 750 mm by the NBC, above 24 in by the AMCQ. The help quotes the three; the call is yours. The client's report shows the areas, the problems, the sizes and the flashings; waste, bundles, exposures and stock lengths stay in your team's report.
Skylights have a section of their own. One row per skylight: the job (replace, reflash or a new opening), the type and the roofing around it, the size code and its rough opening typed from the maker's chart (VELUX M04: 30 1/16 x 37 7/8 in), the opening there now and the change in each direction, the rafter spacing the size fits, the pitch (VELUX deck-mounted: 14 to 85 degrees; IRC R308.6.8: a 4 in curb below 3:12 unless the maker says otherwise) and the distance to the nearest ridge, valley, wall or skylight against the maker's minimum (VELUX with shingles: 18 in above and below, 12 in at the sides). One row per light shaft: its size at the ceiling and its depth at the center give the wall area to frame, insulate and finish. Every requirement is typed; the margins only show the distance.
Sources
- GAF, bundles per square Manufacturer data
- IRC 2021, R905.2.8 Code
- Owens Corning, Duration instructions Manufacturer data
- GAF, step flashing (TAB-R-173) Manufacturer data
- IRC 2021, R1003.20 Code
- VELUX, skylight size chart Manufacturer data
- VELUX, FS installation Manufacturer data
- IRC 2021, R308.6 Code
- NBC 2020, 9.26.4 Code
- NBC 2020, 9.7 Code
- AMCQ, Bulletin 18 Trade association
- AMCQ, Division 4 (2025) Trade association
