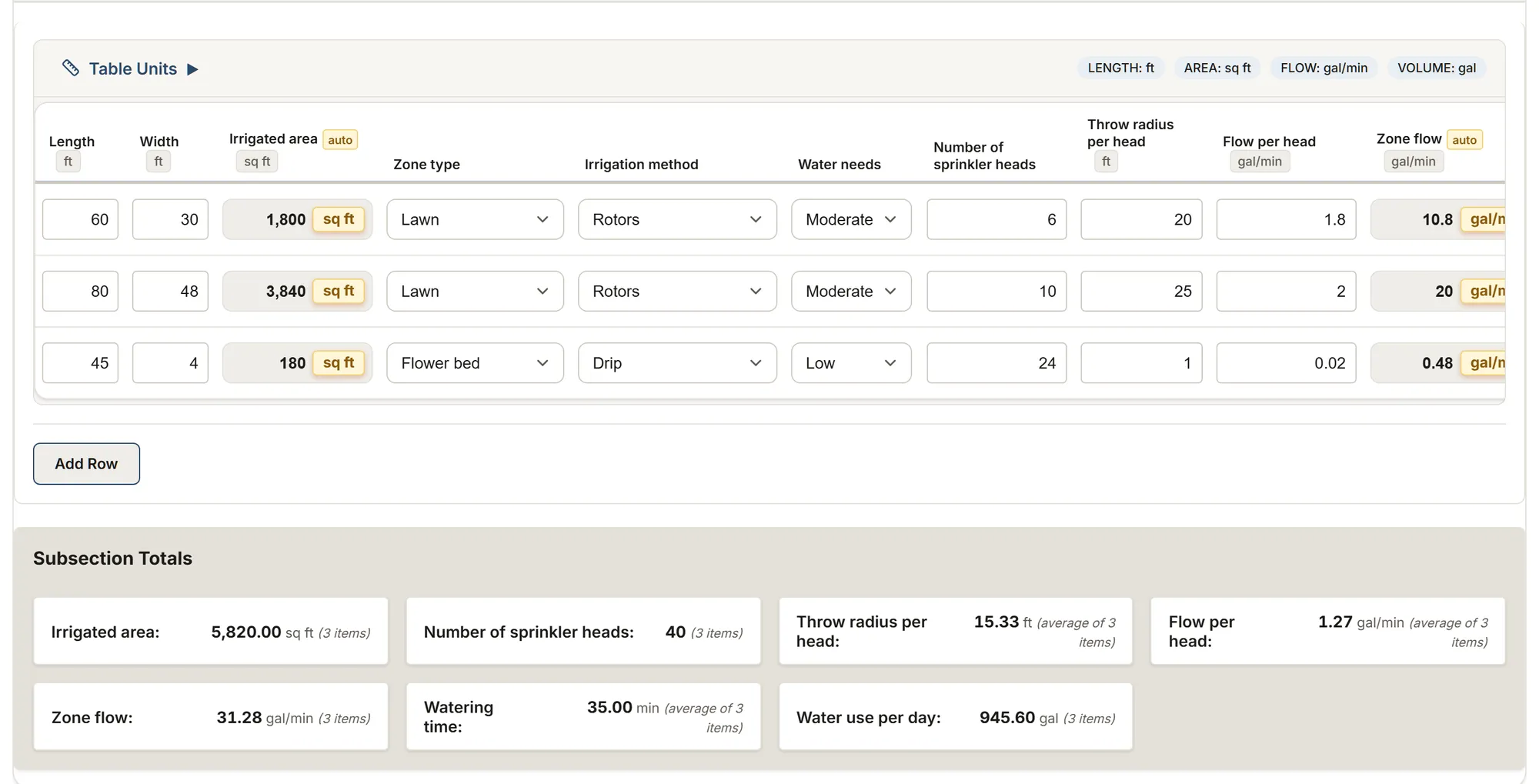

Irrigation systems: a filled-in survey in MesuPro
Irrigation systems: the same sheet on a phone
A survey made with this template, in the app.

What you measure

The template's tables and their columns, as the app shows them. Calculated columns fill in as you type.

Irrigation zones

  • Length
  • Width
  • Irrigated area calculated
  • Zone typeChoices: Lawn Flower bed Vegetable garden Shrubs Hedge Rock garden Planters
  • Irrigation methodChoices: Spray heads Rotors Micro-sprinklers Drip Soaker hose Subsurface irrigation Misting
  • Water needsChoices: Low Moderate High Very high
  • Number of sprinkler heads
  • Throw radius per head
  • Flow per head
  • Zone flow calculated
  • Precipitation rate calculated
  • Water to apply per watering
  • Calculated run time calculated
  • Watering time
  • Water per watering calculated
  • Notes

Piping

  • Length
  • Pipe sizeChoices: 16 mm (drip line) 20 mm 25 mm 32 mm 40 mm 50 mm 63 mm 1/2 in 3/4 in 1 in 1 1/4 in 1 1/2 in 2 in
  • Pipe materialChoices: Polyethylene (poly pipe) PVC PEX-AL-PEX PEX Copper Stainless steel
  • Installation typeChoices: Buried Partly buried Above ground In a trench In a sleeve
  • Burial depth
  • Trench width
  • Pressure ratingChoices: PN 6 (87 psi) PN 10 (145 psi) PN 16 (232 psi) PN 25 (363 psi) Class 100 psi Class 160 psi Class 200 psi Schedule 40 Poly pipe, 75 psi Poly pipe, 100 psi Poly pipe, 160 psi
  • Number of fittings
  • Number of valves
  • Trench excavation volume calculated
  • Notes

Tanks and storage

  • Tank length
  • Tank width
  • Tank depth
  • Tank volume calculated
  • Capacity calculated
  • Tank typeChoices: Plastic tank Concrete tank Lined pond Rainwater harvesting Drilled well Dug well
  • LocationChoices: Buried Partly buried Above ground Basement Utility room
  • Pump neededChoices: None Submersible pump Surface pump Booster pump Pump with pressure tank
  • Pump power
  • FiltrationChoices: None Sand filter Disc filter Y-strainer UV system
  • Notes

See these tables calculate with your own measurements, no account.

Try this template

More templates: Landscaping

Hardscaping: patios & walkways⁠

Patios, walkways and walls: material with waste, base stone in tons, polymeric sand, geotextile and excavation.

You get: Total area Material to order Base volume

Landscaping: planting⁠

Beds, hedges and amendments: number of plants, mulch and soil volumes.

You get: Planting area Total number of plants Mulch needed

Lawn installation: sod and seed⁠

A new lawn, zone by zone: sod or seed, sod to order, rolls, pallets, seed, topsoil and fertilizer.

You get: Lawn area Sod to order Seed to buy

About this template

Installing and servicing automatic sprinkler and irrigation systems.

Guide and sources

Read the guide and sources

Divide the lot into zones of one head type each (sprays, rotors or drip). Measure each zone, count the heads and read each nozzle's flow and radius on the manufacturer's chart at your working pressure. Space heads head to head: the spacing never exceeds the radius.

The zone's precipitation rate is its flow divided by its area (in/h). Run time is the water to apply divided by that rate: a lawn needs about 1 in a week, rain included, split over the days your water utility allows. Keep each zone under about 75% of the available flow.

Every system connected to drinking water needs a backflow preventer (AVB, PVB, DCVA or RPZ, per the IPC / IRC or your local code), tested as your water utility requires, often every year. A pressure vacuum breaker is not enough when the system is blown out with compressed air; never blow air through the backflow device.
