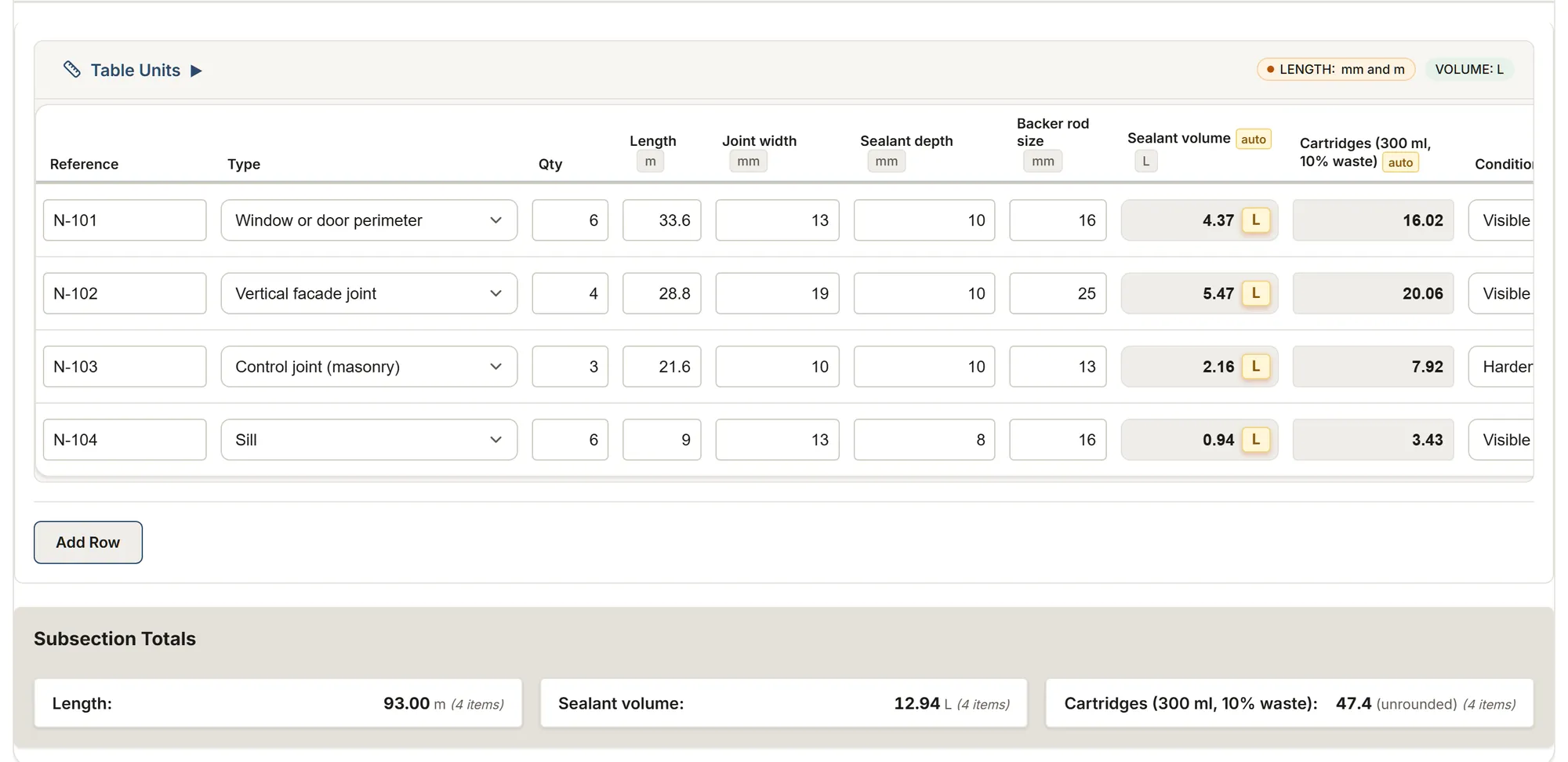

Facade joint survey (m)

Lengths in meters, joints in millimeters, volume in liters and 300 ml cartridges, facade by facade.

Start your 14-day free trial Try this template

No credit card. Cancel anytime.

Metric units by default, imperial available for each table.

What you measure

The template's tables and their columns, as the app shows them. Calculated columns fill in as you type.

Reference
TypeChoices: Window or door perimeter Vertical facade joint Horizontal facade joint Other Control joint (masonry) Expansion joint Coping or parapet cap Penetration (louver, vent, conduit) Sill Sidewalk to building
Qty
Length
Joint width
Sealant depth
Backer rod size
Sealant volume calculated
Cartridges (300 ml, 10% waste) calculated
ConditionChoices: Visible separation Visible cracking No visible defect noted Not inspected Cohesive failure Missing or open joint Covered or patched over Hardened
AccessChoices: From ground Elevated access to assess Obstructed Ladder Scissor lift Boom lift Swing stage Scaffold From the roof
SubstrateChoices: Brick Precast concrete Cast-in-place concrete Concrete block Stone Aluminum (storefront, window) Metal panel Wood Vinyl EIFS (synthetic stucco) Other
Existing sealant (old polysulfide: test for PCBs)Choices: Polyurethane Silicone Polysulfide (test for PCBs if before 1980) Acrylic Butyl Unknown
Pull testChoices: Good adhesion Adhesive failure Cohesive failure Not tested
Work to doChoices: Cut out and reseal Reseal over Spot repair No work Out of scope
StatusChoices: Surveyed To confirm Remeasure
Notes, open question

Joint survey for a resealing quote: lengths, widths, condition, access and sealant quantities

Lengths in feet, joints in inches, volume in gallons and 10.1 oz cartridges, facade by facade.

Feet and inches by default
