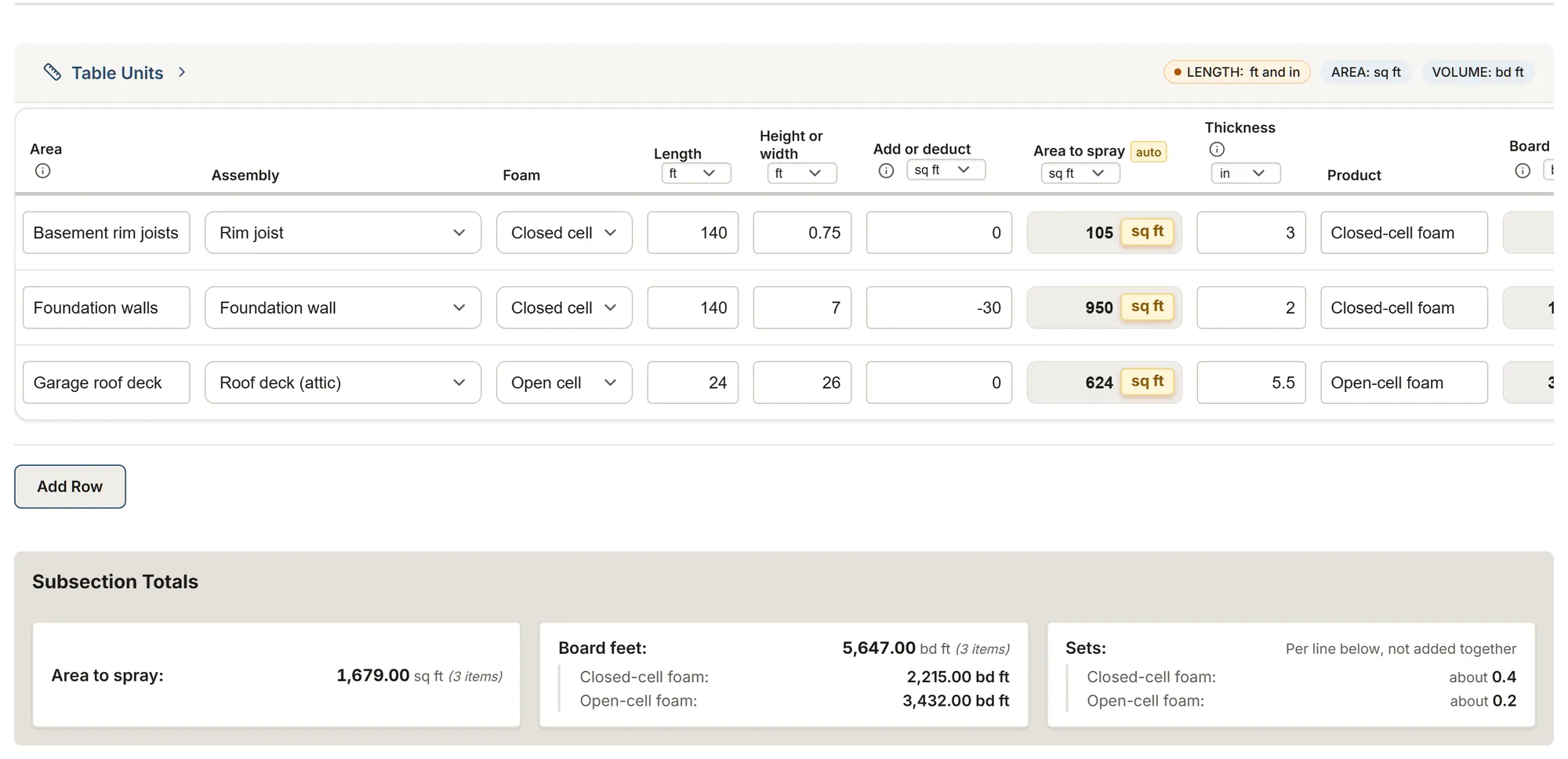

Spray foam insulation survey

About this template

Measure each area to spray with polyurethane foam: the assembly, closed or open cell, the area and thickness, the board feet, the passes from the product's maximum per pass, the sets from the supplier's yield, the R-value reached and the thermal barrier the foam will need.

Guide and sources

One row per area to spray: the assembly, closed or open cell, the length and height (or width), then the thickness. The figures in the hints come from several makers' data sheets and the codes; your product's data sheet always comes first.

Quantities: board feet are the area times the thickness (1 sq ft at 1 in). The sets come from the yield your supplier gives for its set and your conditions; makers print figures such as 5,000 bd ft per set for a closed-cell foam and about 20,000 for an open-cell foam. The passes follow the product's maximum per pass: 2 in for most closed-cell foams, each pass cooled before the next.

R-value: the thickness times the R per inch from the data sheet, in imperial R; the NBC counts sprayed medium-density polyurethane at 0.036 RSI per mm. Foam facing a room needs a thermal barrier (an interior finish, sheet metal, or gypsum in the US), with exceptions for concealed spaces and an ignition barrier in some attics and crawl spaces: the sheet records which, it never judges an assembly.

In Canada, spray foam (the NBC's French says « pulvérisée ») is installed to CAN/ULC-S705.2 by certified installers, with a daily work record. Plan the occupants' return from the product's data sheet, often 24 hours with ventilation. The client's report shows the areas, thicknesses, board feet and R-values; the passes, yields and sets stay in your team's report.

Sources

• Icynene ProSeal Manufacturer dataIcynene ProSeal closed-cell spray foam, technical data sheet, Icynene (sheet hosted by a dealer), MD-C-200v3. Checked Oct 15, 2026
• Huntsman, Heatlok HFO PRO Manufacturer dataHeatlok HFO PRO closed-cell spray foam, technical data sheet and sell sheet, Huntsman Building Solutions, TDS AN 20.00057 rev. 03.21.24; sell sheet AN 20.00051 rev. 12.23.20. Checked Oct 15, 2026
• Owens Corning, Natural-Therm 0.5 Manufacturer dataNatural-Therm 0.5 open-cell spray foam, product data sheet, Natural Polymers (Owens Corning), Pub. No. 10026006-D (July 2026). Checked Oct 15, 2026
• Johns Manville, Corbond open cell Manufacturer dataHow JM's Corbond spray foam line keeps getting better (open-cell yield), Johns Manville, April 2024. Checked Oct 15, 2026
• IRC 2021, R316 CodeInternational Residential Code 2021, R316 Foam plastic (as adopted in Colorado), International Code Council (read in a state adoption on UpCodes), 2021. Checked Oct 15, 2026
• NBC 2020, 9.25.2 CodeNational Building Code of Canada 2020, 9.25.2 Thermal insulation (9.25.2.2 insulation materials, 9.25.2.5 installation of spray-applied polyurethane), National Research Council Canada, 2020, Vol. 2, pp. 9-165, 9-166 and 9-630 (Quebec: Code de construction, chapitre I, in force 2025-04-17). Checked Oct 15, 2026
• Huntsman (Demilec), Heatlok Soya HFO Manufacturer dataHeatlok Soya HFO closed-cell spray foam, technical data sheet (Canada), Huntsman Building Solutions (Demilec), AN 20.00002, rev. 10.21.20. Checked Oct 15, 2026
• NBC 2020, 9.10.17.10 CodeNational Building Code of Canada 2020, 9.10.17.10 Protection of foamed plastics, National Research Council Canada, 2020, Vol. 2, p. 9-76 (Quebec: Code de construction, chapitre I, in force 2025-04-17). Checked Oct 15, 2026
