Concrete steps repair: survey

Concrete steps: flights with their riser and run differences, damage by step, patch volume and bags, cracks and sealant tubes.

Start your 14-day free trial Try this template

No credit card. Cancel anytime.

Feet and inches or metric: your choice. One switch on the sheet converts every measurement.

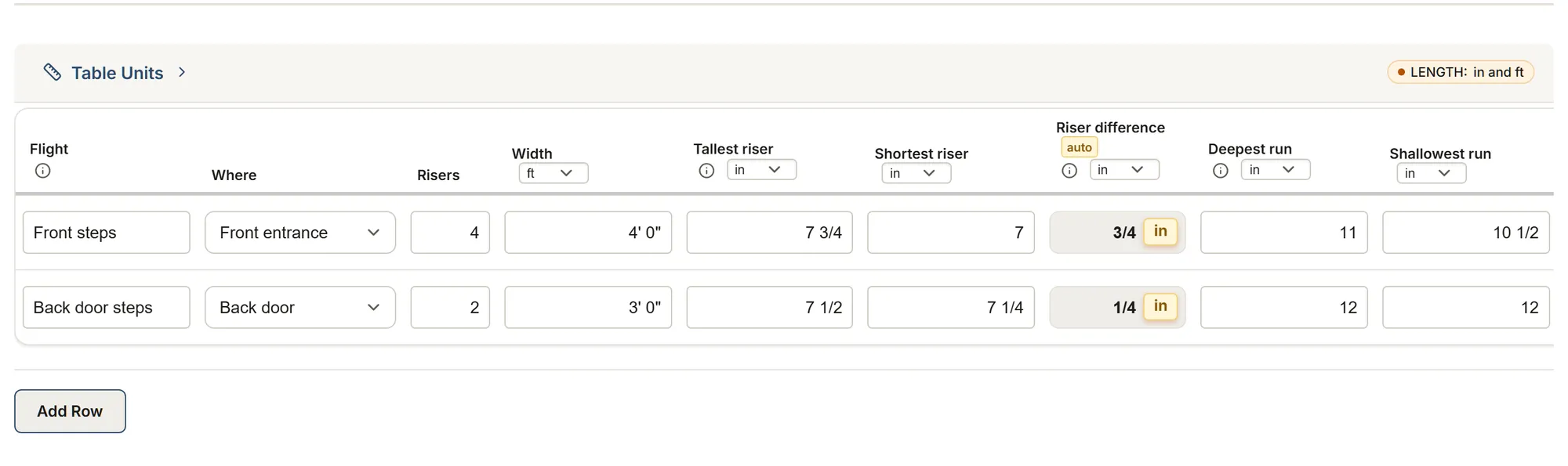

Concrete steps repair: survey: a filled-in survey in MesuPro — A survey made with this template, in the app.

What you measure

The template's tables and their columns, as the app shows them. Calculated columns fill in as you type.

Flights of steps

Flight
WhereChoices: Front entrance Back door Side door Basement walkout Garage Other
Risers
Width
Tallest riser
Shortest riser
Riser difference calculated
Deepest run
Shallowest run
Run difference calculated
LandingChoices: None Top landing Bottom landing Both
RailingChoices: Solid Loose at its anchors Missing To replace
Notes

Damage to repair

Step
DamageChoices: Broken nosing Broken corner Scaled or spalled tread Hollow or delaminated Exposed rebar Settled or tilted step Pulling away from the house Other
Patch length
Patch width
Patch depth
Patch volume calculated
Bag yield
Bags calculated
Repair plannedChoices: Patch Rebuild with a form Resurface the tread Reset or replace the step Ask a professional To decide
Notes

Cracks to seal

Crack
Crack length
Crack width
Sealant depth
Length a tube fills
Sealant tubes calculated
Notes

About this template

Flights of concrete steps with their riser and run differences, damage step by step with the patch volume and bags, cracks with the sealant tubes.

Guide and sources

The visit before existing concrete steps are repaired, on one sheet. The flights: one row per flight, where it is, its risers and width, the tallest and shortest riser and the deepest and shallowest run measured (the sheet shows each difference), the landing and the railing.

The damage to repair: one row per damage, step by step, its kind, the patch size once the loose concrete is out (the volume adds up by damage), the bag yield you type (the bags round up at the section total) and the repair planned. The cracks to seal: their length, width and sealant depth and the length a tube fills (the tubes round up at the section total). The hardscape template builds new outdoor steps.

The hints cite without applying: NBC 2020 9.8.4 and IRC 2021 R311.7.5 on rises, runs and their tolerances (for reference, check the code your city enforces), QUIKRETE on repairing steps and on its concrete mix's yield, SAKRETE on its crack sealant, Quebec City on stair permits. The differences are compared to nothing; no structural verdict: a settled step or a stair pulling away is for a professional. No price: the sheet is the measure.

Sources

IRC 2021, R311.7.5 CodeInternational Residential Code 2021, R311.7.1 and R311.7.5 Stair treads and risers, International Code Council (read in a state adoption), 2021. Checked Oct 14, 2026
QUIKRETE, repairing steps Manufacturer dataRepairing Steps (project sheet), QUIKRETE, project sheet (file of 2006). Checked Oct 19, 2026
Quikrete 1101 data sheet Manufacturer dataQUIKRETE Concrete Mix (No. 1101), data sheet, QUIKRETE, revised October 2022. Checked Oct 12, 2026
NBC 2020, 9.8.4 CodeNational Building Code of Canada 2020, 9.8.4 Step dimensions, 9.8.2.1 Stair width and Note A-9.8.4, National Research Council Canada, 2020 (Quebec: Code de construction, chapitre I, in force 2025-04-17). Checked Oct 14, 2026
SAKRETE, concrete and mortar repair (French) Manufacturer dataSAKRETE Concrete and Mortar Repair, product data sheet (French), King Packaged Materials Company, REV.0005_07/18/19. Checked Oct 19, 2026
Ville de Québec, fiche 15 GovernmentFiche 15 : auvent, porche ouvert, portique ouvert, balcon, perron, terrasse et escalier extérieur, Ville de Québec, August 2026. Checked Oct 7, 2026
